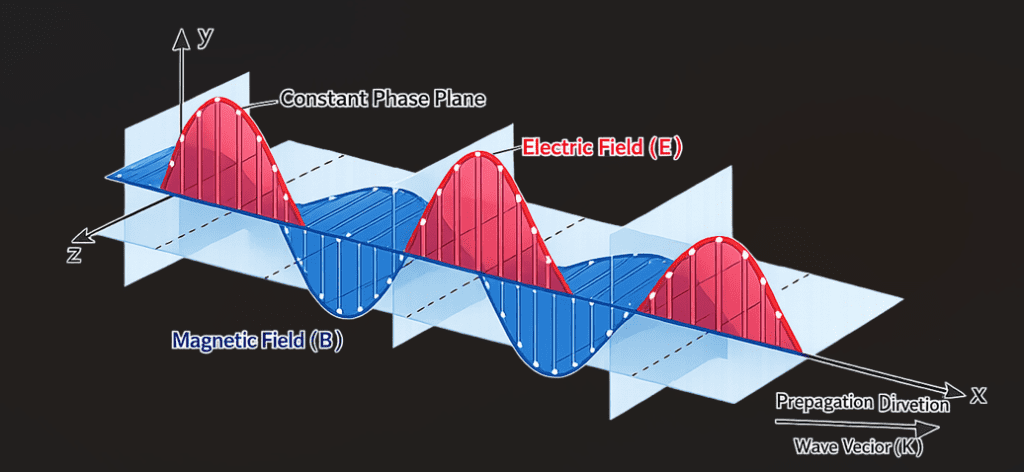

A uniform plane wave (UPW) is a special type of electromagnetic wave in which the electric field and magnetic field are uniform over any plane perpendicular to the direction of propagation. It is an idealized concept widely used in wave propagation, transmission lines, and antenna theory.
Table of Contents
Definition
A uniform plane wave is defined as an electromagnetic wave whose field components are constant in magnitude and phase over any plane perpendicular to the direction of propagation.
Basic Characteristics
- Fields vary only along the direction of propagation (say, z-direction)
- No variation in x and y directions
- Wavefronts are infinite planes
- Electric field \(E\) and magnetic field \(H\) are perpendicular to each other and to the direction of propagation
Mathematical Representation
For a wave propagating in the +z direction:
Electric Field
\[
E(z,t) = E_0 \cos(\omega t – \beta z)
\]
Magnetic Field
\[
H(z,t) = H_0 \cos(\omega t – \beta z)
\]
- \(E_0, H_0\) = amplitudes
- \(\omega\) = angular frequency
- \(\beta\) = phase constant
Direction of Fields
- \(\vec{E} \perp \vec{H}\)
- Both are perpendicular to the direction of propagation
This forms a right-handed coordinate system:
\[
\vec{E} \times \vec{H} = \vec{S}
\]
- \(\vec{S}\) = Poynting vector (direction of power flow)
Wave Impedance
The ratio of electric field to magnetic field is called intrinsic impedance:
\[
\eta = \frac{E}{H} = \sqrt{\frac{\mu}{\varepsilon}}
\]
For free space:
\[
\eta_0 = 377 \ \Omega
\]
Propagation Constant
\[
\gamma = \alpha + j\beta
\]
- \(\alpha\) = attenuation constant
- \(\beta\) = phase constant
Types of Uniform Plane Waves
Lossless Medium
- \(\alpha = 0\)
- No attenuation
- Fields remain constant in amplitude
Lossy Medium
- \(\alpha > 0\)
- Wave amplitude decreases exponentially
Power Flow (Poynting Vector)
\[
\vec{S} = \vec{E} \times \vec{H}
\]
- Represents power per unit area
- Direction of energy propagation
Important Properties
- Wavefronts are plane surfaces
- Fields are uniform across any plane
- No divergence of wave
- Ideal assumption (used for analysis)
Applications
- Electromagnetic wave propagation
- Antenna theory
- Microwave engineering
- Optical systems
